BUILT FOR EVERY CATCH
SPORTSMAN
1710
STARTING AT
$24,988
BOAT LENGTH
17' 10"
PACKAGE LENGTH
23'
SEATING CAPACITY
4
FUEL CAPACITY
21 GAL
MAX HORSEPOWER
90

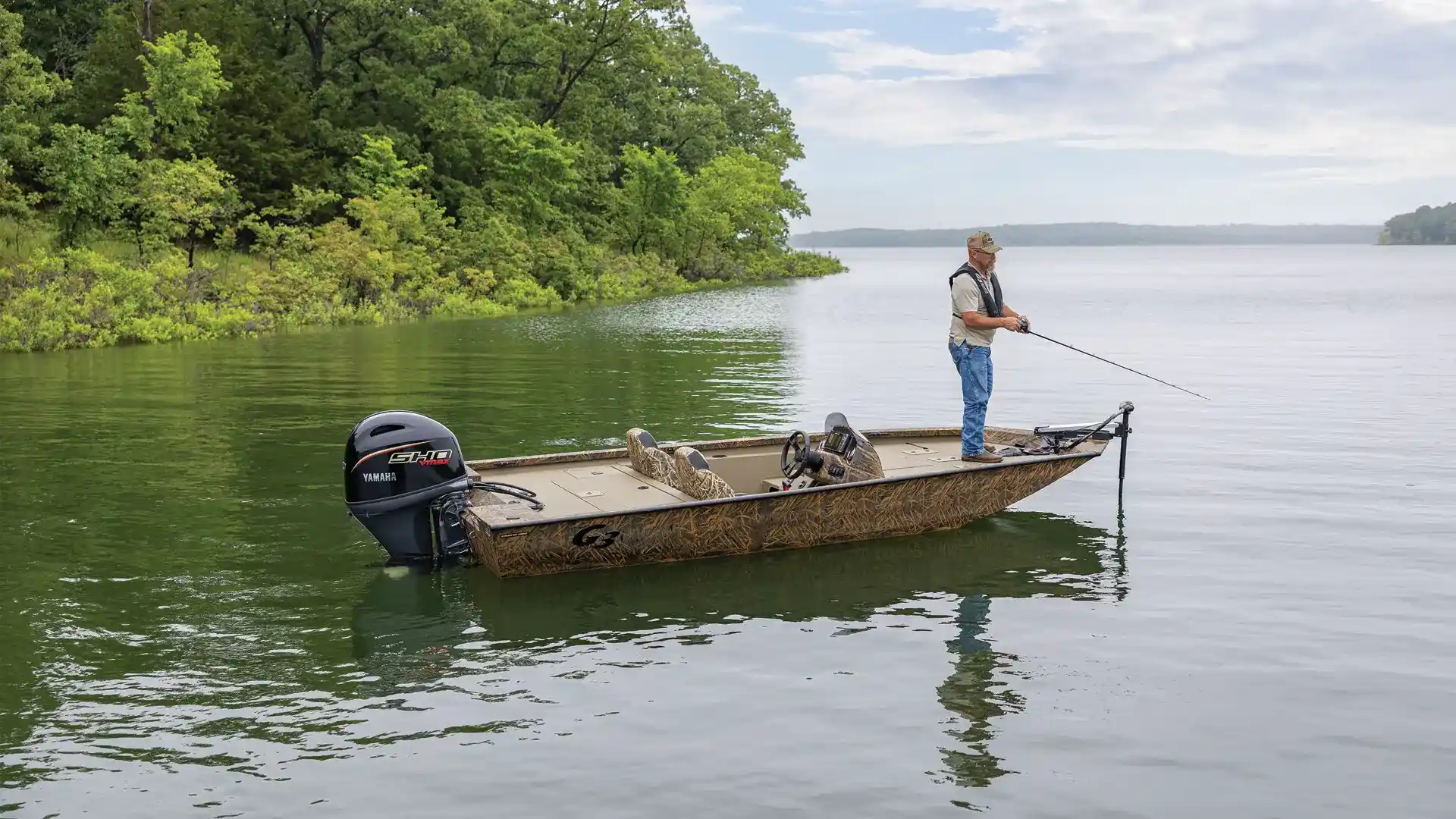

DESIGNED WITH ANGLERS IN MIND
Built to handle it all
Outfit your boat with Mossy Oak camo, and it’s built for anything the water brings.
EXPLORE ALL SPORTSMAN MODELS
Sportsman 1710 Full Specifications
| Specifications | |
|---|---|
| Hull Gauge | 0.1 |
| Boat Length | 17' 10" |
| Package Length | 23' |
| Width on Trailer | 92" |
| Beam | 92" |
| Dry Weight | 1080 |
| Package Weight | 1865 |
| Max HP | 90 |
| Person Capacity | 4 |
| Fuel Capacity | 21 GAL |
| Livewell | 15" x 45" 33 G |
| Standard Features | |
| All aluminum, all welded .100 gauge hull | S |
| Quick Connect Steering | S |
| Tilt Wheel Steering | S |

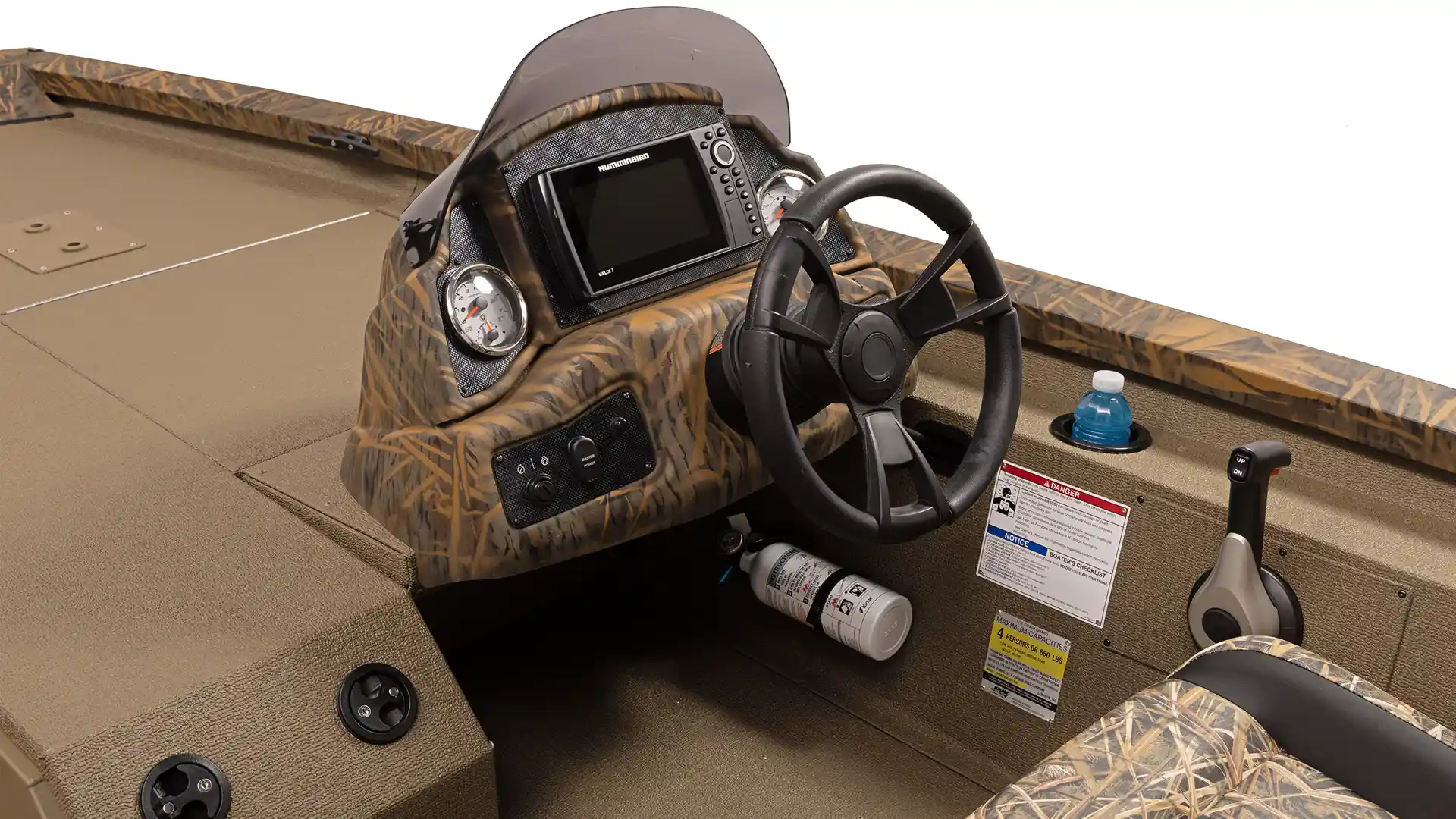

| Console W/Fuel, Speedo, Tach & Trim | S |
| Aerated Livewell - 15" x 45" 33 G | S |

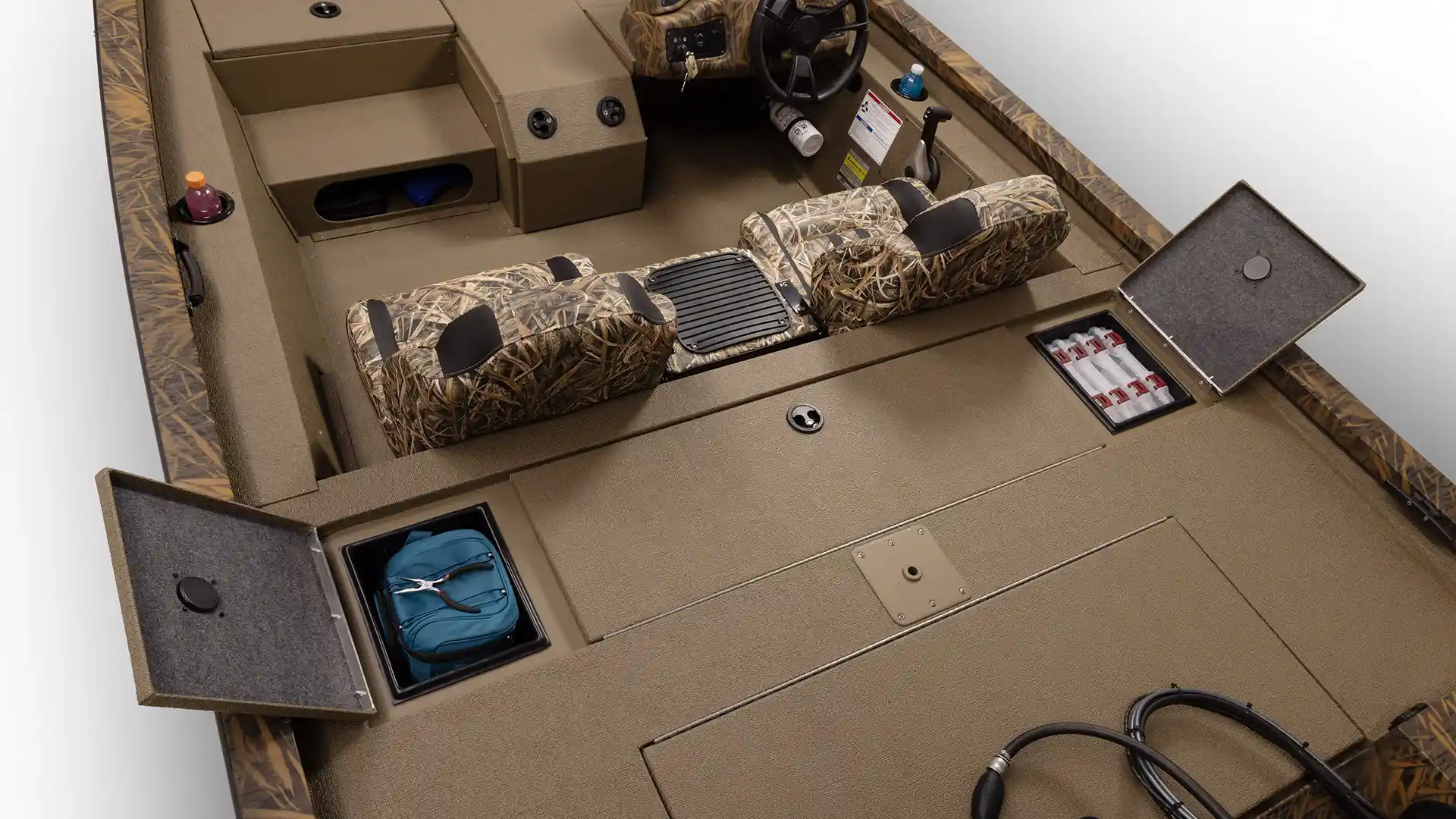

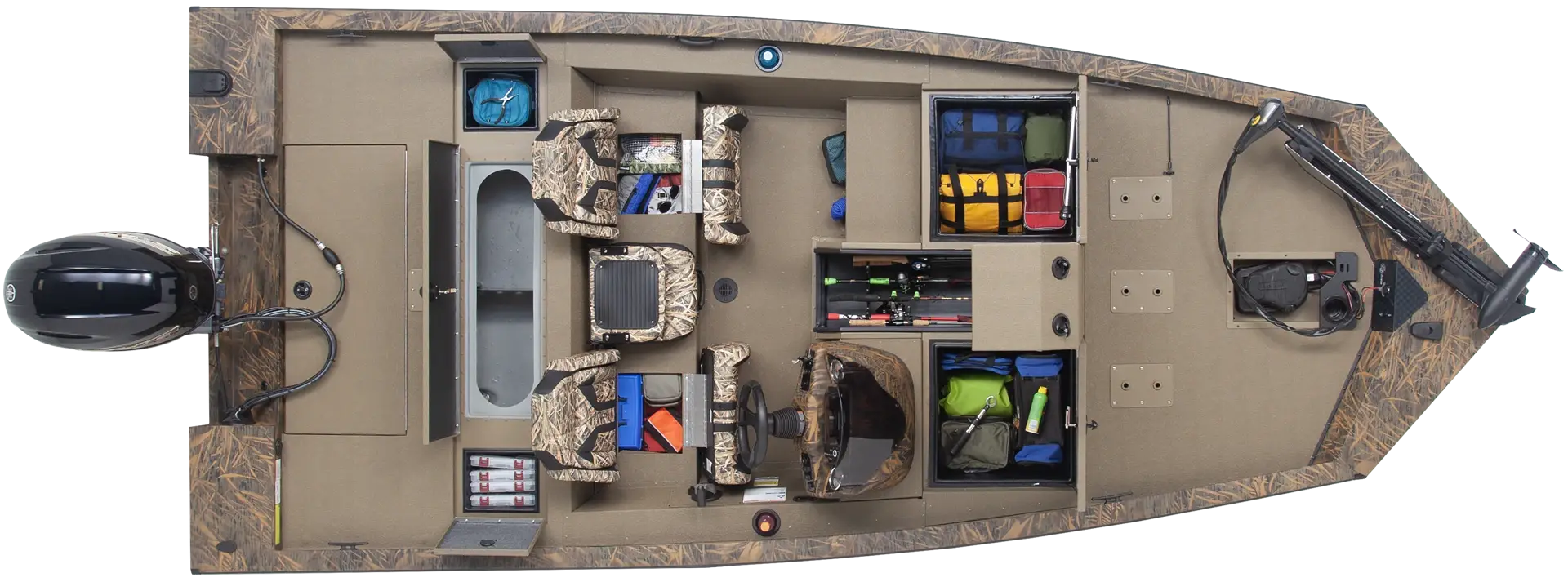

| Lockable Storage | S |
| Cup Holders | S |
| Livewell Recirculation w/Pumpout | S |
| 3 Engine Trim Locations | S |

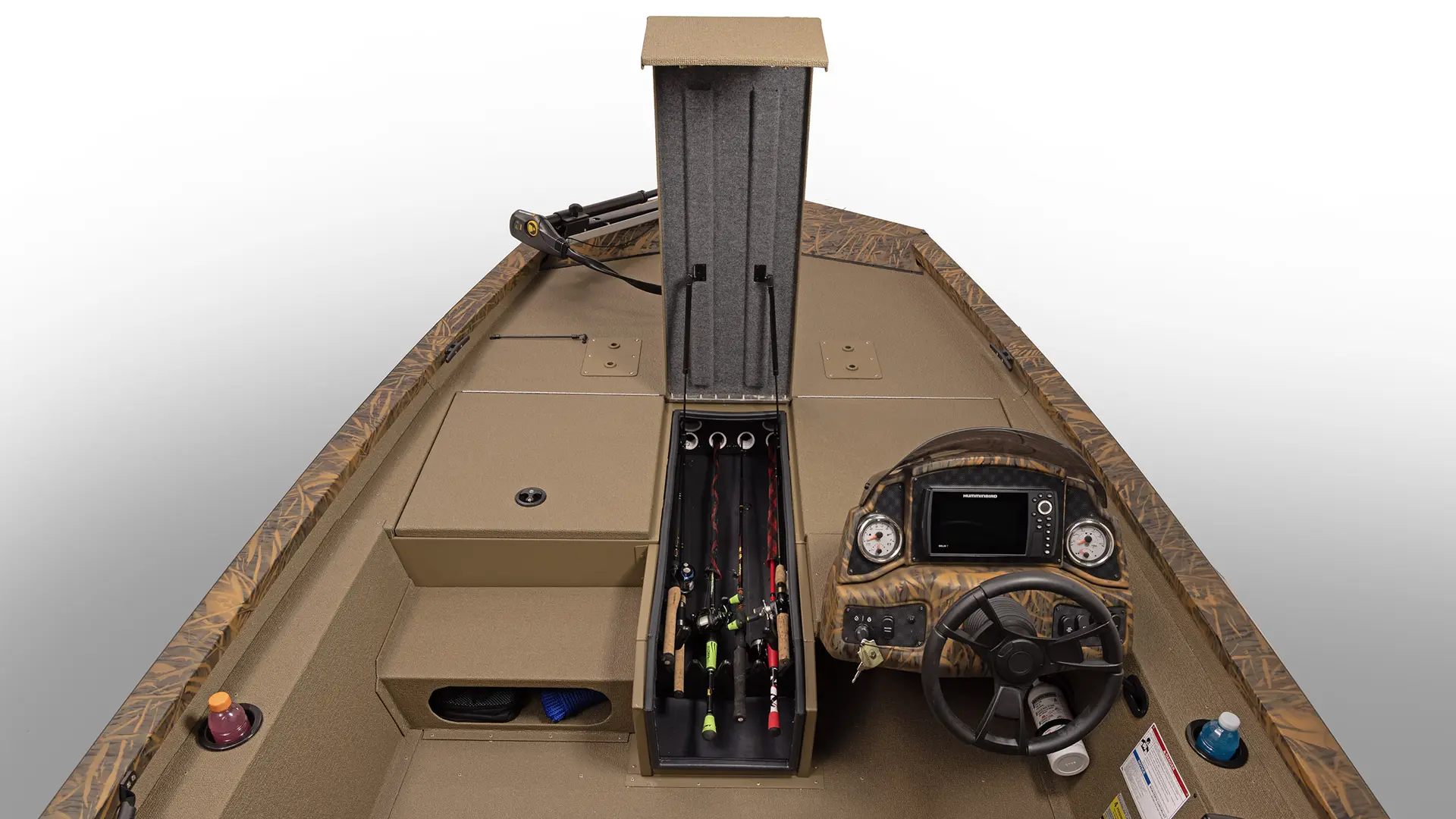

| Lockable Center Rod Storage | S |
| Tackle Trays | S |
| Front Deck Roto-Molded Storage | S |

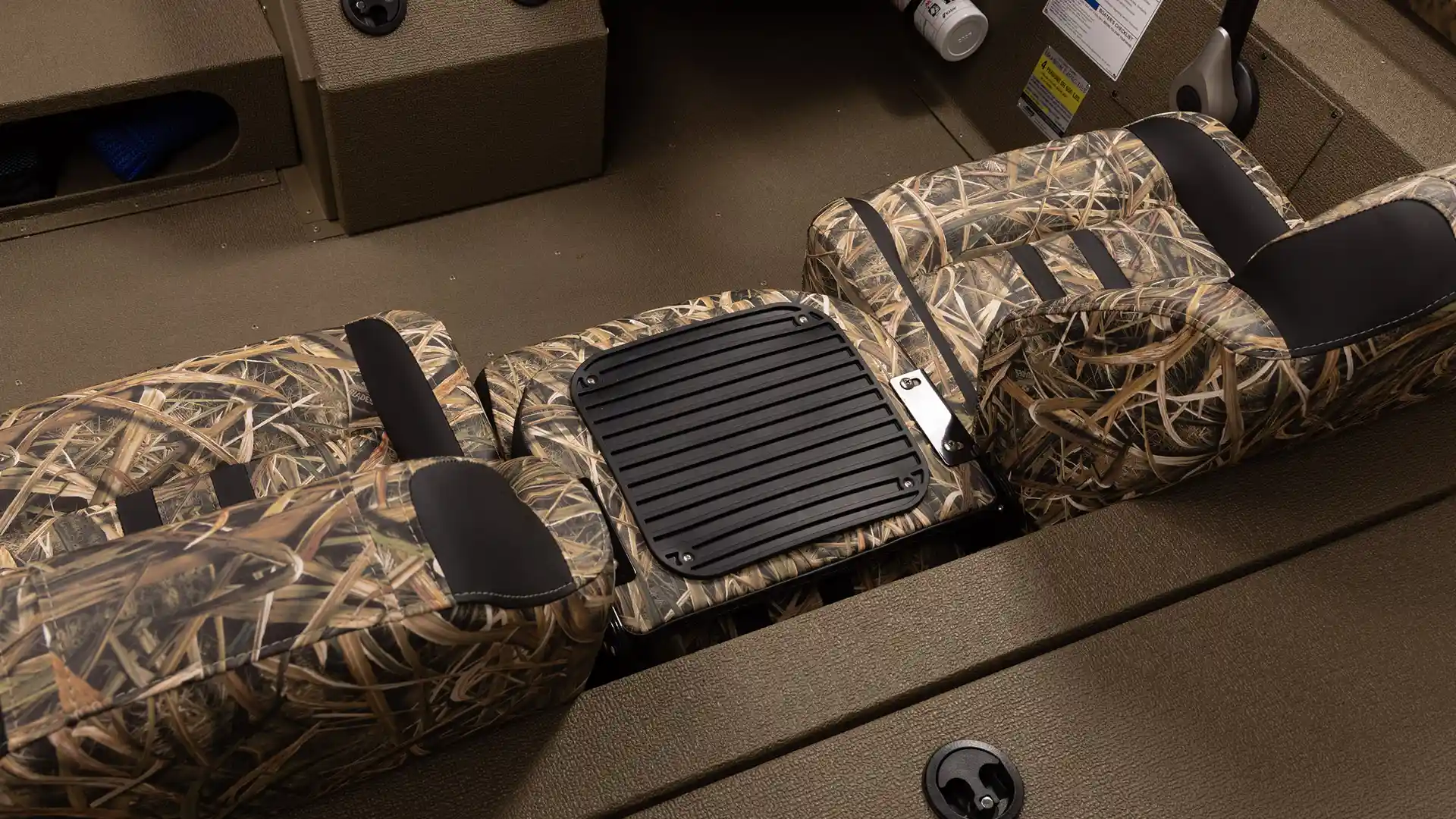

| Step to Front Deck | S |
| 2 Bank Battery Charger | S |

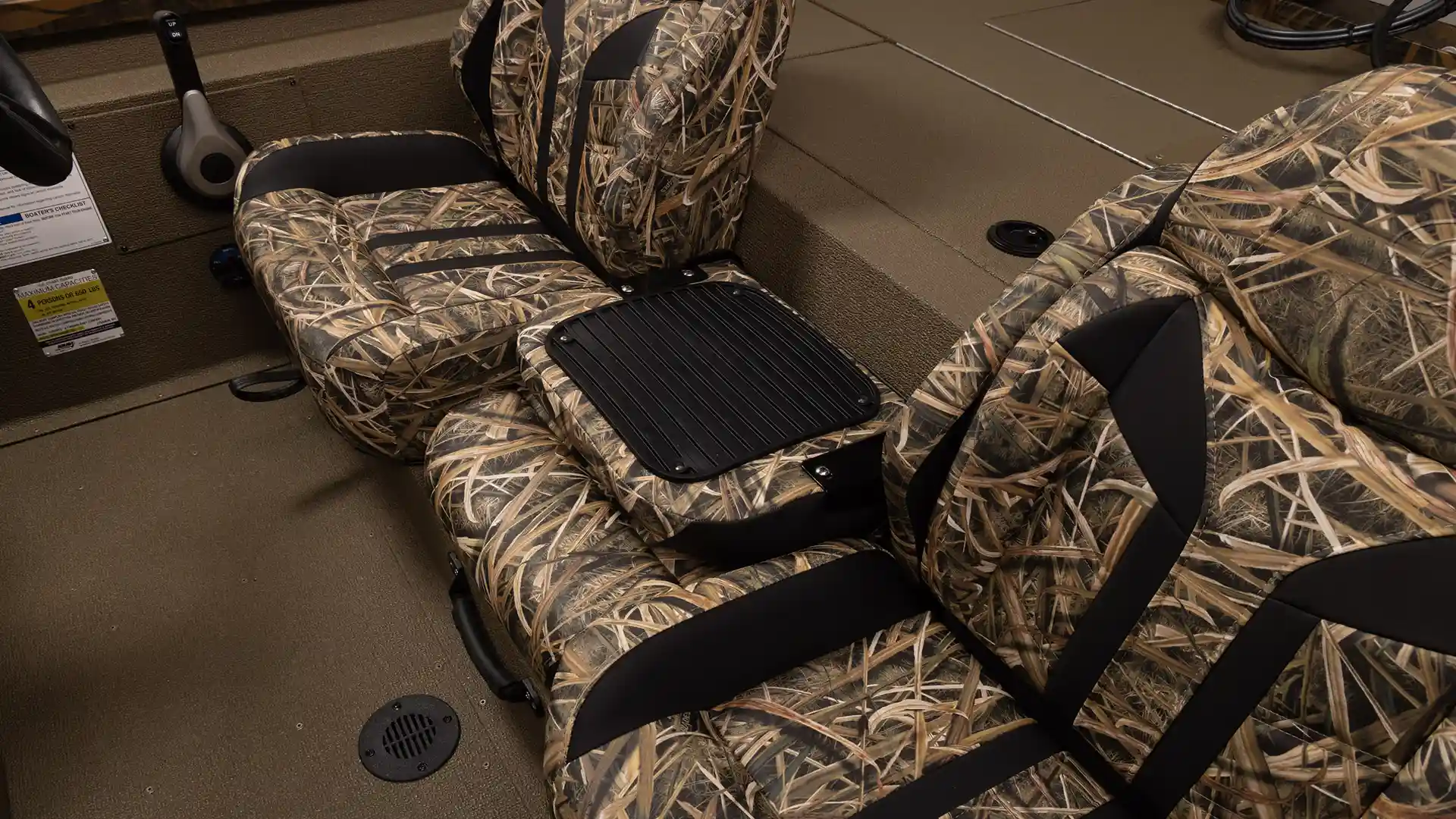

| 3 Across Cockpit Seating | S |
| Navigational Lights w/Storage Clips | S |
| Transom Saver | S |
| Fire Extinguisher | S |
| Horn | S |
| Flooring: 18 oz Marine Grade Carpet | S |
| Bilge Pump - 800 GPH | S |
| Yamaha Controls and Cables | S |
| Yamaha Analog Gauges | S |
| 2 Fishing Chairs | S |
| Built In Fuel System - 21 GAL | S |
| Flooring | |
| Gray Carpet | O |
| Gray Vinyl | O |
| Desert Brown Vinyl | O |
| Engines | |
| Factory Rigging | |
| Engine Factory Rig 90 HP or lower | O |
| Yamaha | |
| F25LC | O |
| F25LWTC | O |
| F30LA | O |
| F40LA | O |
| F50LC | O |
| F50LC3 BRN | O |
| F60LC | O |
| F60LC3 BRN | O |
| F70LB | O |
| F70LB3 BRN | O |
| F75LB | O |
| F90LB | O |
| VF90LB | O |
| Boat Configuration | |
| Storage Boxes, Seats & Cushions | |
| Footbox Filler | O |
| Steering | |
| Quick Connect Steering (Standard) | O |
| Hydraulic Steering Upgrade (available for 75hp & up) | O |
| Cable Power Assist Steering (available for 90hp & up) | O |
| Fish Finders | |
| Humminbird Electronics | |
| Console Mount - Helix 5 Chirp DI GPS G3 | O |
| Console Mount - Helix 7 Chirp Mega SI GPS G4N | O |
| Console Mount - Xplore 9 MSI | O |
| Console Mount - Xplore 10 MSI | O |
| Console Mount - Xplore 12 MSI | O |
| Bow Mount - Helix 5 Chirp DI GPS G3 | O |
| Bow Mount - Helix 7 Chirp Mega SI GPS G4N | O |
| Bow Mount - Xplore 9 MSI | O |
| Bow Mount - Xplore 10 MSI | O |
| Bow Mount - Xplore 12 MSI | O |
| Minn Kota Trolling Motors | |
| 55 Edge | O |
| 70 Edge | O |
| RT SM70 52 | O |
| Maxxum 70 52 | O |
| Ultrex 80 52 DSC | O |
| Ultrex 80 52 MDI | O |
| Power-Poles | |
| Blade Series | |
| Blade Series 8' Black - Port Side | O |
| Blade Series 8' Black - Starboard Side | O |
| Blade Series 8' White - Port Side | O |
| Blade Series 8' White - Starboard Side | O |
| Blade Series 8' Blue - Port Side | O |
| Blade Series 8' Blue - Starboard Side | O |
| Blade Series 8' Red - Port Side | O |
| Blade Series 8' Red - Starboard Side | O |
| Blade Series 10' Black - Port Side | O |
| Blade Series 10' Black - Starboard Side | O |
| Blade Series 10' White - Port Side | O |
| Blade Series 10' White - Starboard Side | O |
| Blade Series 10' Blue - Port Side | O |
| Blade Series 10' Blue - Starboard Side | O |
| Blade Series 10' Red - Port Side | O |
| Blade Series 10' Red - Starboard Side | O |
| Sportsman II | |
| Sportsman II 8' Black w/Bracket - Port Side | O |
| Sportsman II 8' Black w/Bracket - Starboard Side | O |
| Factory Installation of Power Poles | |
| Fee for Factory Installation of Power Pole | O |
| Boat Options | |
| Accessories | |
| Mooring Cover | O |
| RS Battery Charger 3 Bank | O |
| RS Battery Charger 2 Bank (Standard) | O |
| Consoles | |
| Dual Console Option - Port Console | O |
| Trailer | |
| Trailer Options | |
| Black Trail Guard Trailer | O |
| Aluminum Trail Guard Trailer | O |
| Spare Tire Options | |
| Spare Tire w/ Carrier | O |
